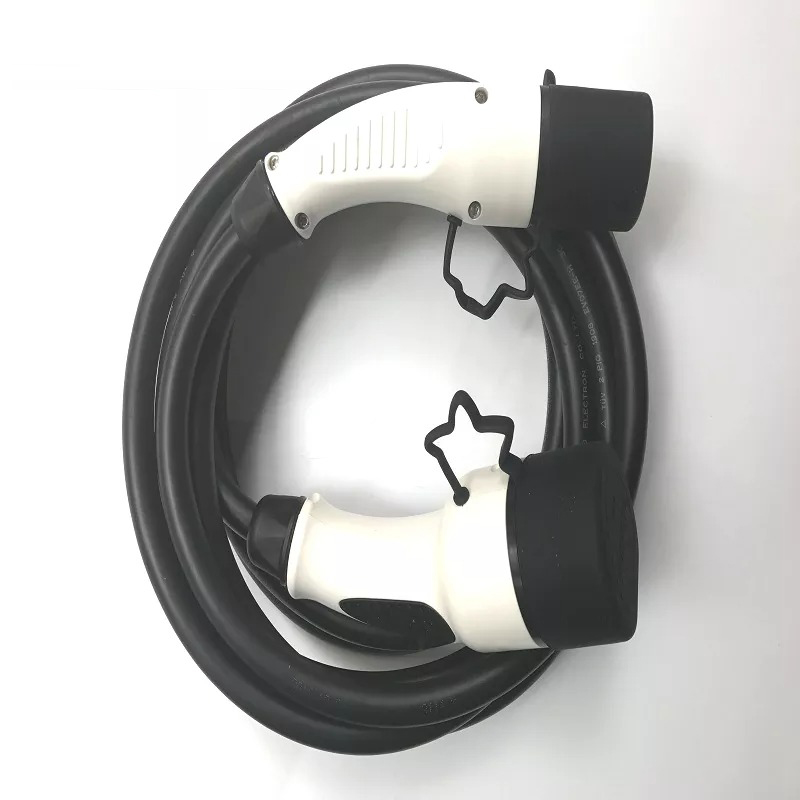

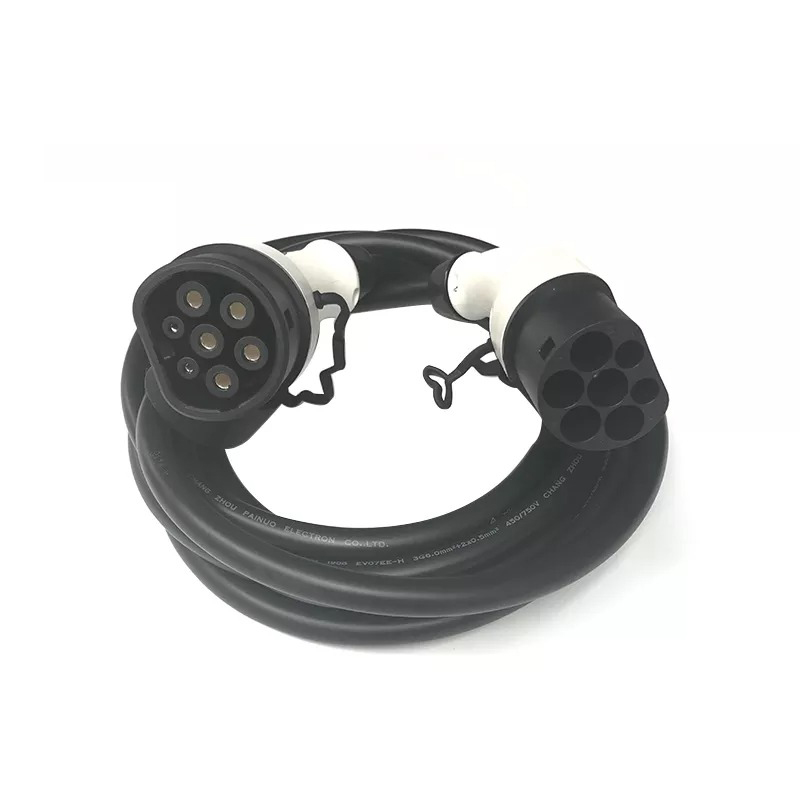

Stand Grounding Home Ev charging 16A/32A Single phase mennekes type 2 to Type 2 male to female ev connector

- 2022-12-14 -

Stand Grounding  Home Ev charging 16A/32A Single phase mennekes type 2 to Type 2 male to female ev connector :



Specification of Type2 AC Inlet socket:

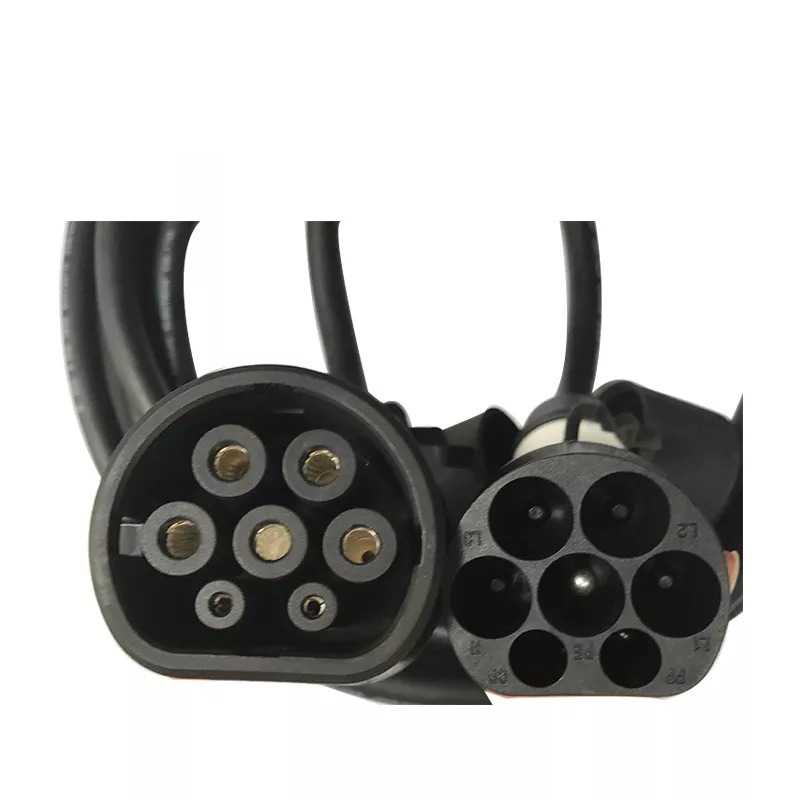

Insert arrangements and functional definition



Terminal name functional definition
L1 Live wire
L2/N Neutral wire
Equipment Ground PE
Control Pilot Control Pilot
Proximity Detection Proximity Detection



Model selection and the standard wiring



Model

Number of inserts

Cable Spec.

Remark

V2-DSS-EV16P

5

3*2.5mm2+2*0.5mm2 The length of the cable can be customized

V2-DSS-EV32P

5

3*6mm2+2*0.5mm2



Charging Coupler Interface
