High-quality battery less Hybrid Solar Panel System Solar Panel 600KW Solar Power support lithium battery
- 2022-11-08 -
|

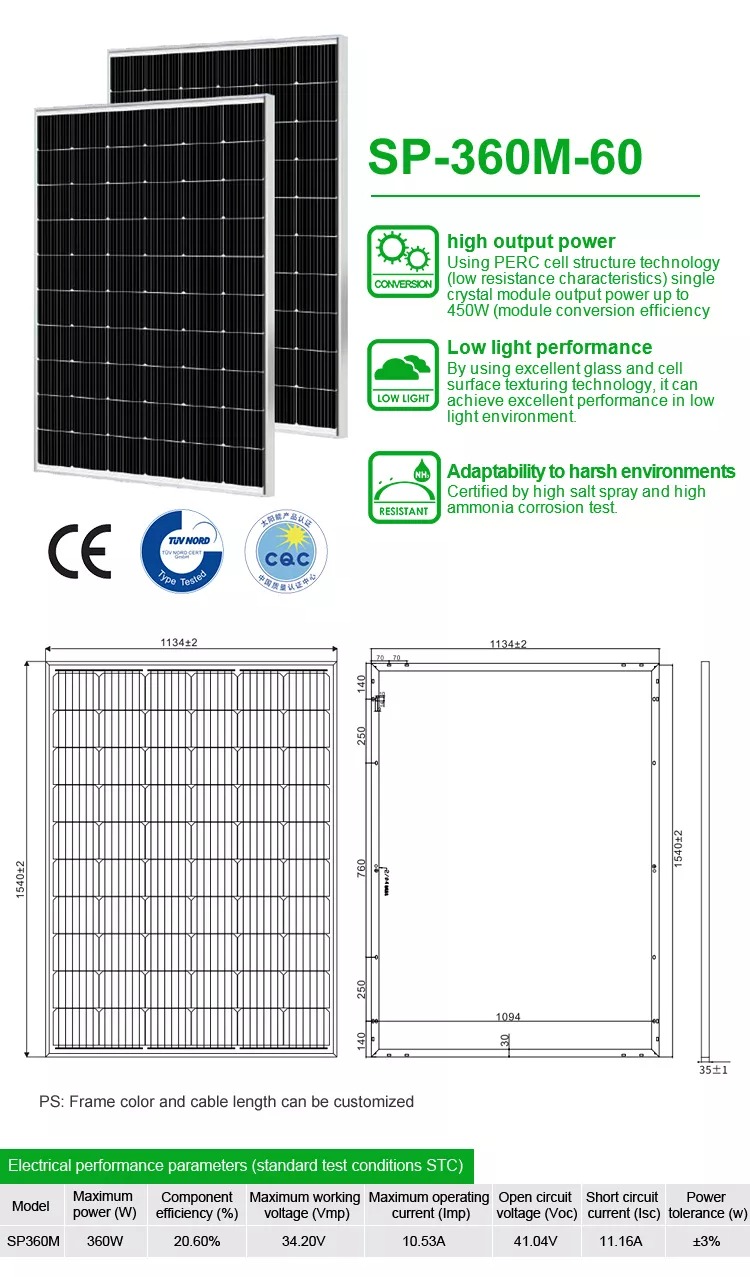

Mechanical Parameters
|
|
|
Solar Cell(Type/Size)
|
MONO(182mm)
|
|
Solar Cells
|
Number60Pcs(6×10)
|
|
Dimension
|
1540×1134×35mm
|
|
Weight
|
18.8Kg/Pcs
|
|
Tempered Glass
|
3.2 mm High Permeability Coated
|
|
Frame
|
Anodized aluminum alloy
|
|
Junction Box
|
IP67、3* bypass diode
|
|
Cable
|
4.0mm2,(+)1000mm/(-)1000mm
|
|
Connector
|
Original MC4/Compatible MC4
|
|
Mechanical Load
|
Front 5400PA/back 2400PA
|
|
Packing
|
|
|
Module
|
TypeSP360M-60
|
|
Carton Size
|
1560×1160×85mm
|
|
Number
|
2Pcs/Ctn
|
|
Weight
|
38Kg/Ctn
|
|
Volume
|
0.153Cbm/Ctn
|
|
20GP Container
|
386Pcs
|
|
40HQ Container
|
902Pcs
|
