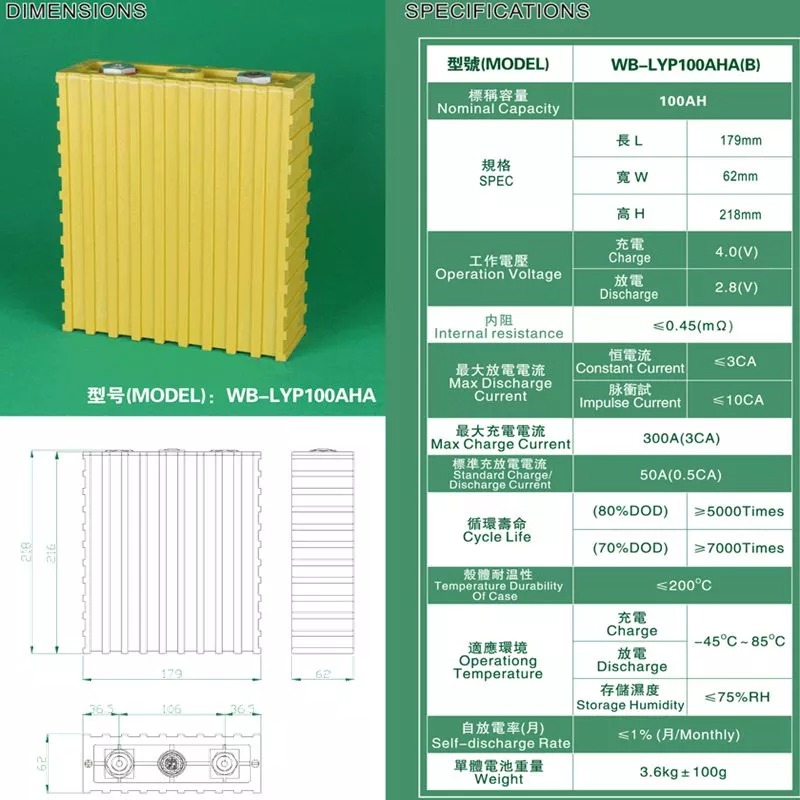

High Power 3C Industrial Winston WB-LYP100AHA Tall LiFeYPO4 3.2V 100Ah lithium Cell
Specification Of LifeYpo4 Battery
Models of Winston Thurdsky LifePO4 Battery:
|
Capacity |
Description |
Dimension(mm) |
Weight (kg) |
Inner resistance |
|
40AH |
WB-LYP 40Ah |
115×47×183 |
1.5 |
≤0.7 mΩ |
|
60AH |
WB-LYP60Ah |
114×61×203 |
2.3 |
≤0.55 mΩ |
|
90AH |
WB-LYP90AHA-A |
143×68×218 |
3.0 |
≤0.5 mΩ |
|
WB-LYP90AHA-B |
143×61×218 |
3.0 |
≤0.5 mΩ |
|
|
100AH |
WB-LY100AHA-A |
143×67×218 |
3.5 |
≤0.45mΩ |
|
WB-LY100AHA-B |
179×62×218 |
3.5 |
≤0.45mΩ |
|
|
130AH |
WB-LYP130AHA |
360x55x177 |
5.2 |
≤0.45mΩ |
|
160AH |
WB-LYP160AHA-A |
182×70.5×277 |
5.6 |
≤0.4 mΩ |
|
WB-LYP160AHA-B |
209×65×278 |
5.6 |
≤0.4 mΩ |
|
|
200AH |
WB-LYP200AHA-A |
182×100×278 |
7.3 |
≤0.35 mΩ |
|
WB-LYP200AHA-B |
361×55.2×256 |
7.3 |
≤0.35 mΩ |
|
|
260AH |
WB-LYP260Ah |
361×55.5×283 |
8.7 |
≤0.3 mΩ |
|
300AH |
WB-LYP300Ah |
362×55.5×306 |
9.7 |
≤0.3 mΩ |
|
400AH |
WB-LYP400AHA-A |
449×70.5×282 |
13.5 |
≤0.3 mΩ |
|
WB-LYP400AHA-B |
460×65×285 |
13.5 |
≤0.3 mΩ |
|
|
700AH |
WB-LYP700Ah |
627×67×305 |
21 |
≤0.3 mΩ |
|
1000AH |
WB-LYP1000AHA-A |
846×71×373 |
41 |
≤0.3 mΩ |
|
WB-LYP1000AHA-C |
560×130×356 |
41 |
≤0.3 mΩ |
