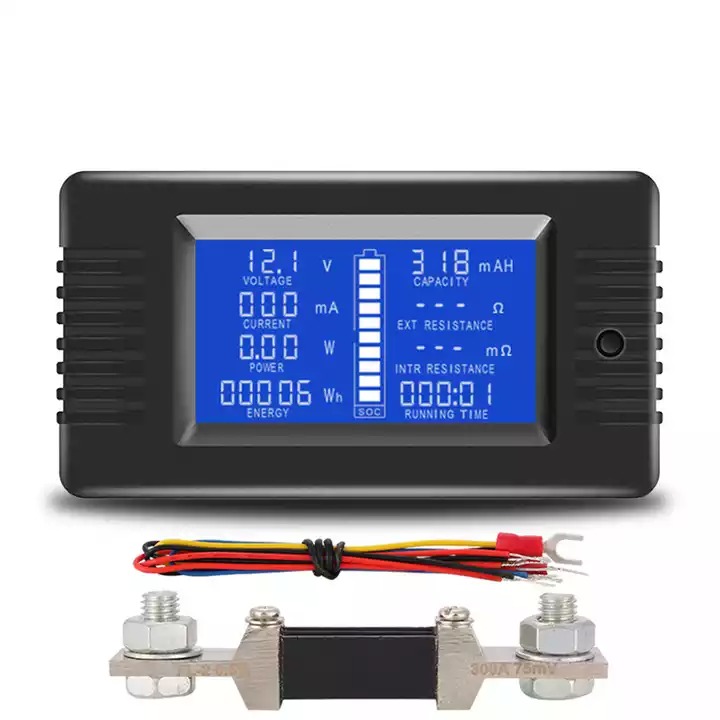

Factory Price 0-200V 200A Watt Impedance Internal Resistance Battery Capacity Voltmeter Motorcycle Meter
- 2022-12-16 -
Factory Price 0-200V 200A Watt Impedance Internal Resistance Battery Capacity Voltmeter Motorcycle Meter
Our advantages:
1, One screen displays nine sets of data:
Most meters on the market only shows one set data with single function, ours can display nine parameters at the same time, all datas are clearly visible.
2. Full view LCD: Use blue film STN full-view LCD screen, every degree makes you good.
3. High precision Chip control: High precision core, choose good electronic components, double sided layout design, welding process is firm, safe and reliable.
4.Can be used with a variety of sets: It can be matched with a variety of sets for customers to choose, to meet the different needs of customers, more flexible use.
5. Reinforced nylon material: The outcase use enhances nylon material, elastic enough to crack.
6. Self-contained backlight function: With backlight function, day and night are clearly visible,LCD screen gives you a better visual experience.
7. Screw-free installation: Press type terminal, no screw,fast and labor-saving installation.
|
Parameter
|
Test Range
|
Resulation
|
Measurement accuracy
|
||
|
Voltage
|
0-200V. (when the test voltage is <8V, please use the independent power supply mode)
|
0.01V
|
1%
|
||
|
Current
|
0-200A
|
1mA
|
1%
|
||
|
Power
|
0-2000W
|
0.01W
|
1%
|
||
|
Impedance
|
0-1000Ω
|
0.1Ω
|
|||
|
Internal Resistance
|
0-999mΩ
|
1mΩ
|
|||
|
Capacity
|
0-1000AH
|
1mAH
|
1%
|
||
|
Dump energy
|
Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy
|
||||
|
Accumulate energy consumption
|
0~9999kWh
|
1Wh
|
1%
|
||
|
Running time
|
0 ~ 999 hour(without load the time will not accumulate)
|
||||
