80A 120A 200A 250A 750V Universal DC Electric Plug Supplier for Electric Vehicle Electrical Connection
Related Products:
Features of DC Inlet socket:
Meet GB/T 20234.3-2015 regulations and requirements
Rated current: 80A or 125A or 200A or 250A
Nice appearance, hand-held ergonomic design, easy plug
>2000MQ(DC1000V
Insulation resistance: 2000MQ2(DC1000V)
contact with staff
Terminal temperature rise: <50K
Excellent protection performance, protection grade IP55
Withstand voltage: 5000V
U94V-0Mechanical life: no-load plugin/pull out> 10000 times
Case Material: Thermoplastic, flame retardant grade 94-0
Impat of external force: can afford 1m drop and 2t vehicle run
Iver thermoplastic on the topover pressure
Environmental performance-30℃~+50°℃C
Operating temperature:-30℃~+50℃
Model Selection and the standard wiring :
|
Model |
Number of inserts |
Cable Spec. |
Cable Diameter:(Orange/black) |
|
NV3-DSD-EV80P |
80A |
2P(2*0.75mm)2+2P(2*0.75mm)2+3*16mm2+2*4mm2 | 30+1-o.5mm |
|
NV3-DSD-EV125P |
125A |
2*35mm2+2P(4*0.75mm)2+2P(2*0.75mm)2+1*16mm2+2*4mm2 | 34+1-o.5mm |
|
NV3-DSD-EV200P |
200A |
2*70mm2+2P(4*0.75mm)2+2P(2*0.75mm)2+1*16mm2+2*4mm2 | 41+1-o.5mm |
| NV3-DSD-EV250P | 250A | 2*80mm2+2P(4*0.75mm)2+2P(2*0.75mm)2+1*16mm2+2*4mm2 | 42+1-o.5mm |

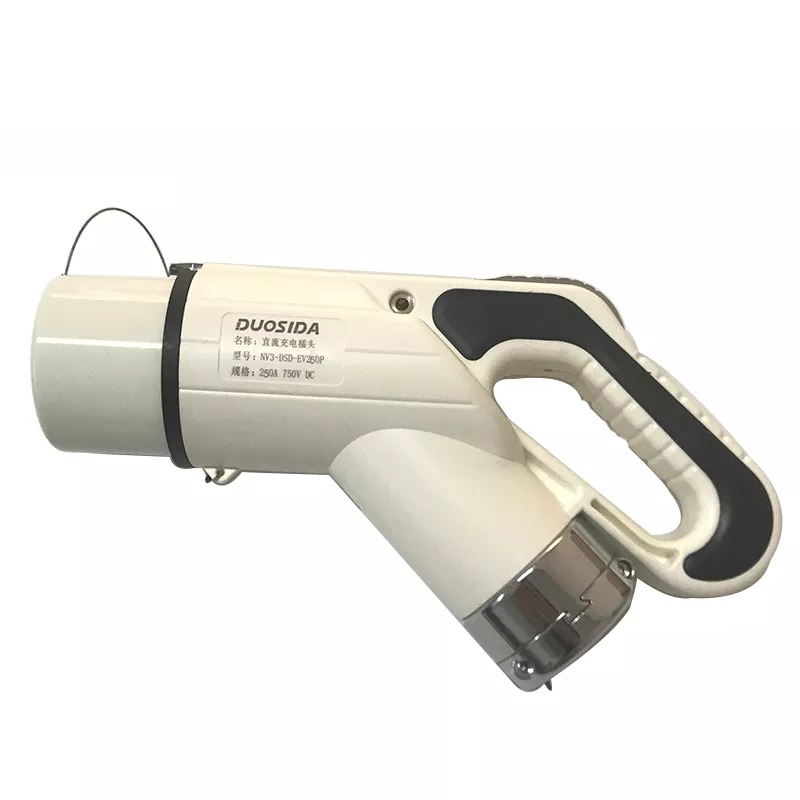

Products Image of DC Plug:
